Introduction to Four-Column Cold Extrusion Forming Hydraulic Press

The four-column cold extrusion forming hydraulic press is specifically designed for cold extrusion, a metal plastic forming process. It is a key piece of equipment in modern manufacturing for producing high-precision, high-strength, and complex parts. Below, Jianlong Hydraulic Technology will share a summary of its core features and provide a clear explanation using a typical technical parameter table for reference.

1. Core Structure: Four-Column Guiding

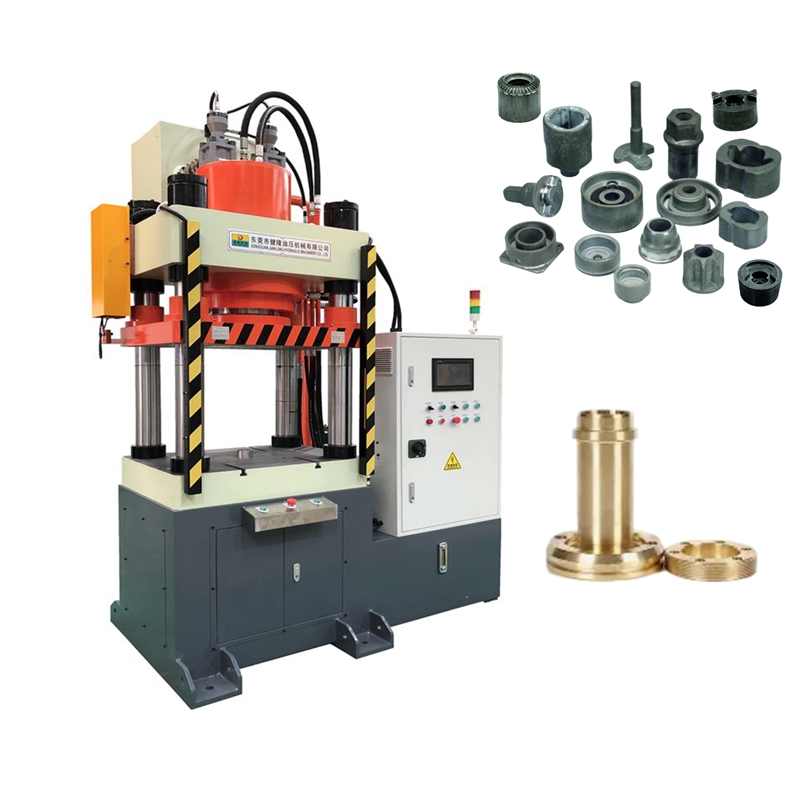

The equipment adopts a classic three-beam, four-column structure (the upper crossbeam, movable crossbeam, and lower worktable are connected by four columns). This structure provides extremely high rigidity and resistance to eccentric loads, accurately guiding the slider movement (accuracy up to ±0.03mm), which is crucial for handling the enormous asymmetric lateral forces during cold extrusion.

2. Working Principle: High-Pressure Hydrostatic Forming

The hydraulic system drives the main cylinder piston downwards, applying powerful static pressure (nominal force typically 63 tons to over 1000 tons) through the mold to the metal billet (such as steel, aluminum, and copper) at room temperature. This causes plastic flow under triaxial compressive stress, filling the mold cavity and forming a complex part in one step.

3.Typical Technical Parameters Reference

4. Process and Performance Advantages

4.1 High Quality and Efficiency: Capable of one-time forming of complex shapes, high precision (up to IT7-8 level), and smooth surfaces, with material utilization reaching 80%-95%.

4.2 Enhanced Performance: Continuous metal fiber production significantly improves part strength, hardness, and fatigue life.

4.3 Energy Saving and Environmental Protection: Operates at room temperature, requiring no heating, saving energy and providing a better working environment.

4.4 High Automation: Easily integrated with feeding and unloading devices, achieving fully automated production.

5. Main Application Areas

Widely used in industries requiring large-volume, high-quality parts:

5.1 Automotive Manufacturing: Gears, piston pins, universal joints, constant velocity ball housings, etc.

5.2 Standard Parts: Bolts, nuts, rivets.

5.3 Electrical Instruments: Housings, connectors.

5.4 Aerospace: High-quality, precision, and complex components.

Four-column cold extrusion hydraulic presses are technology-intensive equipment, and their specific configuration must be strictly matched to the customer's part materials, shapes, dimensions, precision, and production capacity requirements. For more information/advice regarding four-column cold extrusion hydraulic presses or to purchase other high-quality hydraulic presses, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
