CPU Radiator Forming Hydraulic Press Introduction

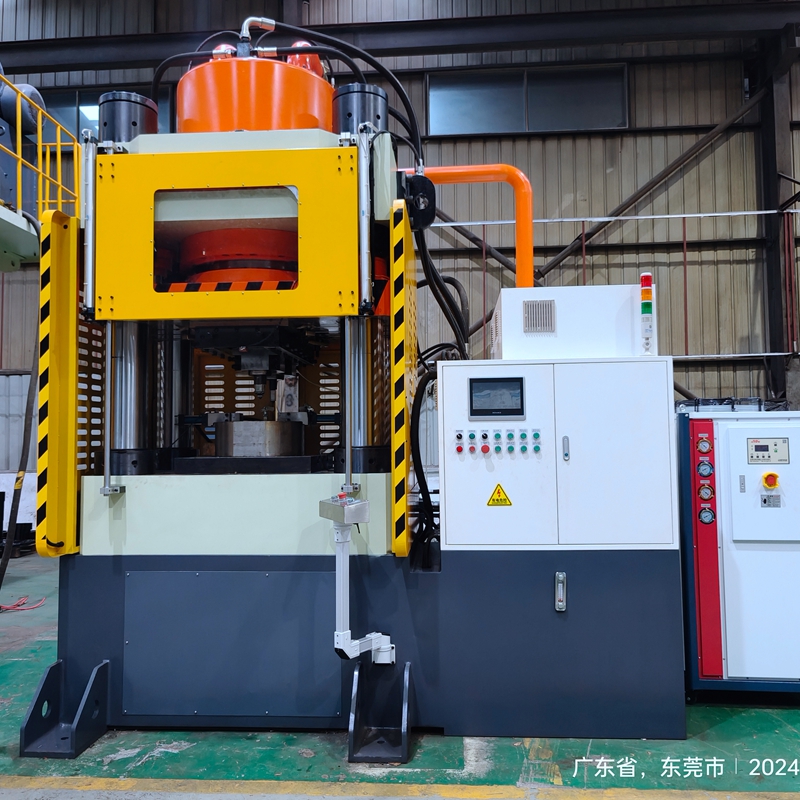

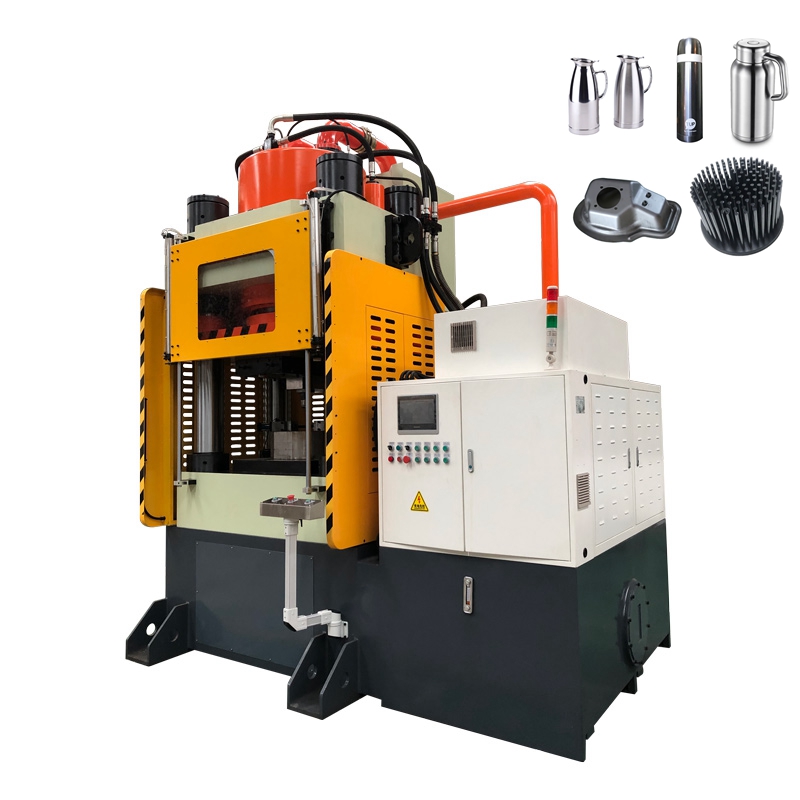

CPU Radiator Forming Hydraulic Press is a hydraulic equipment specially used for manufacturing CPU radiators. It is mainly used for die-casting, stamping or forging metal parts of radiators (such as aluminum fins, copper bottoms, etc.). Let's take a look at the sharing of Jianlong Hydraulic Technology Editor for reference!

1. Equipment Function

1.1 Metal Forming: Press metal materials such as aluminum and copper into heat sink fins, bases or overall structures through high pressure.

1.2 Precision Machining: Ensure the flatness of the contact surface between the radiator and the CPU (such as mirror treatment of the copper bottom) to improve the thermal conductivity.

1.3 Integrated Forming: Some hydraulic presses can complete the structural assembly of the radiator at one time (such as the combination of fins and bottom plates).

2. Core Features

2.1 High Pressure: Usually hundreds to thousands of tons of pressure (such as 500T~2000T) are required to ensure metal density and forming accuracy.

2.2 Temperature Control: Optional heating module (for hot pressing) or cooling system to adapt to different material processes.

2.3 Automation: Integrate feeding, molding, demoulding and other processes, and realize assembly line production with robotic arms or conveyor belts.

2.4 Mold compatibility: Support multi-station molds, and can produce radiators of different specifications (such as tower type, down-press type).

3. Typical process applications

3.1 Die casting: Used for mass production of aluminum heat sink fins, liquid metal fills the mold under high pressure.

3.2 Stamping: Manufacture metal heat sinks through punching, bending and other processes.

3.3 Forging process: Produce high-density copper bottoms to improve the thermal conductivity of radiators.

4. Technical advantages

4.1 High efficiency: Multiple stamping/die-casting cycles can be completed per minute, suitable for large-scale production.

4.2 High precision: The hydraulic system has strong stability and the product tolerance can be controlled within ±0.1mm.

4.3 Energy-saving design: Some models use servo hydraulic system to reduce energy consumption.

5. Application scenarios

5.1 Computer hardware manufacturers: production of air-cooled radiators and water-cooled head metal parts.

5.2 Electronic cooling field: such as graphics card heat sinks, LED heat dissipation modules, etc.

6. Selection reference

6.1 Pressure requirements: select tonnage according to the radiator material (aluminum/copper) and structural complexity.

6.2 Mold adaptation: need to match the radiator design drawings and customize the mold.

6.3 Automation level: whether to equip robot loading and unloading is determined according to the output.

This type of equipment is the core equipment for mass production of CPU radiators, which directly affects the performance and cost of the radiator. If you need to know more about the specific parameters or more CPU radiator molding knowledge, please feel free to tell us (you can scan the following whatsapp QR code), Jianlong Hydraulic Technology will provide you with personalized, customized professional solutions and serve you wholeheartedly.
