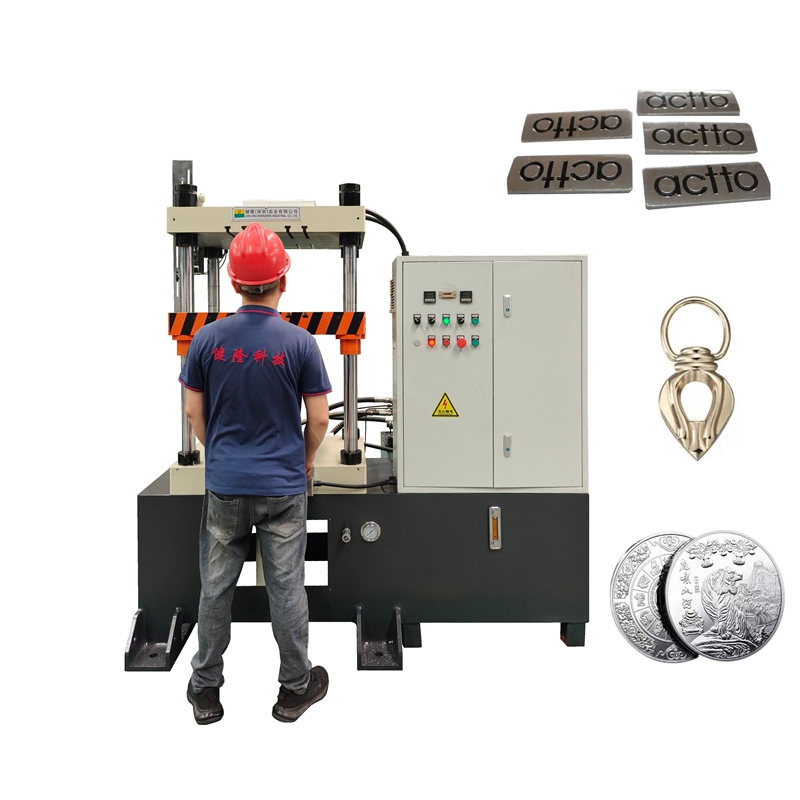

30-ton Downstream Four-column Hydraulic Press Features

The 30-ton downstream four-column hydraulic press is suitable for small- to medium-sized production applications such as hardware processing, electronic components, plastic products, automotive parts, and powder metallurgy. The following product features from Jianlong Hydraulic Technology are shared for your reference when purchasing this press!

1. Structural Design Features

1.1 Downstream Cylinder Design: The main cylinder is mounted below the press body (below the worktable), applying upward pressure to achieve the stamping action. This provides high stability and is suitable for processes such as deep drawing and press fitting.

1.2 Four-column Guide Structure: Four high-strength columns ensure precise up and down movement of the slide, resisting off-center loads and preventing deformation during long-term use.

1.3 Integral Steel Plate Welded Frame: Annealed for excellent rigidity and fatigue resistance, suitable for high-intensity operations.

2. Performance Features

2.1 30-ton nominal pressure: Meets the needs of stamping, forming, bending, and straightening small and medium-sized parts. 2.2 Adjustable Pressure and Stroke: Controlled by a hydraulic system or PLC, pressure, speed, and stroke are adjustable to meet diverse process requirements.

2.3 Low-Noise, Energy-Saving Design: Utilizing a low-noise oil pump and optimized hydraulic circuit, the machine achieves low energy consumption and smooth operation.

3. Operation and Safety

3.1 Two-Hand Operation Button: Equipped with a two-hand safety start function to prevent accidental operation.

3.2 Emergency Stop Function: Enables rapid shutdown in emergencies, protecting equipment and personnel.

3.3 Photoelectric Protection Device (Optional): Select models are equipped with an infrared barrier to prevent hands from entering the danger zone.

4. Application Flexibility

4.1 Versatile Applications: Suitable for press-fitting, punching, drawing, and powder forming of metal and non-metal materials.

4.2 Mold Compatibility: The worktable features T-slots for easy mold installation and replacement.

4.3 Optional Accessories: Such as pressure sensors, digital displays, and automatic feeders enhance automation.

5. Maintenance Ease

5.1 Separate Hydraulic Station: Facilitates heat dissipation and maintenance, reducing vibration impact on the main unit.

5.2 Centralized Lubrication System: Select models feature manual or automatic lubrication, extending the life of the guide rails and columns.

For more detailed specifications or specific brand and model features, please provide your specific requirements or application scenarios for further analysis (scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized, customized professional solutions and serve you wholeheartedly.
