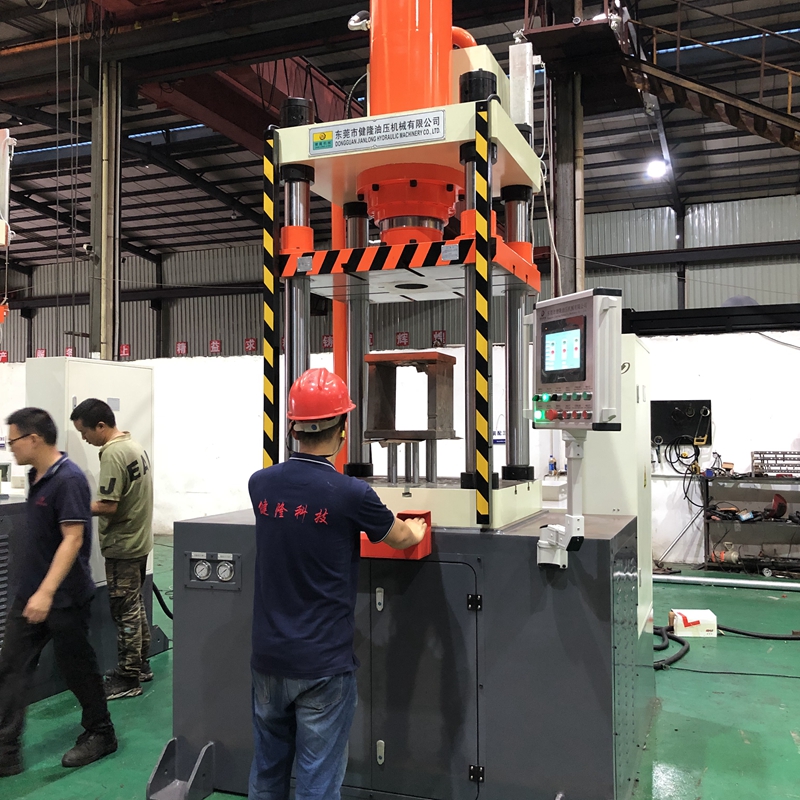

Four-Column Double-Action Stretching Hydraulic Press

1. Product Features：

1.1 This equipment adopts imported Italian servo control and Japanese Mitsubishi intelligent system control. Pressure sensors and electrical components are from German brands, ensuring high intelligent operability, strong stability, and low noise.

1.2 This equipment uses IoT touchscreen control, enabling remote after-sales debugging worldwide, quickly resolving after-sales issues, and facilitating real-time monitoring of equipment operation by customers 24/7.

1.3 The machine body is made of solid steel plate with tempering treatment, employing a four-column structure and extended guide sleeves, resulting in high pressing precision and stable operation.

1.4 It features a large operating space, and the cylinders are manufactured using an integral forging process with Japanese NOK seals, ensuring wear resistance and high sealing performance.

1.5 This equipment boasts high control precision, fast stretching speed, adjustable speed, displacement repeatability of 0.01mm, pressure accuracy of ±0.5%, and stretching force accuracy of ±0.2%.

2. Scope of Application：

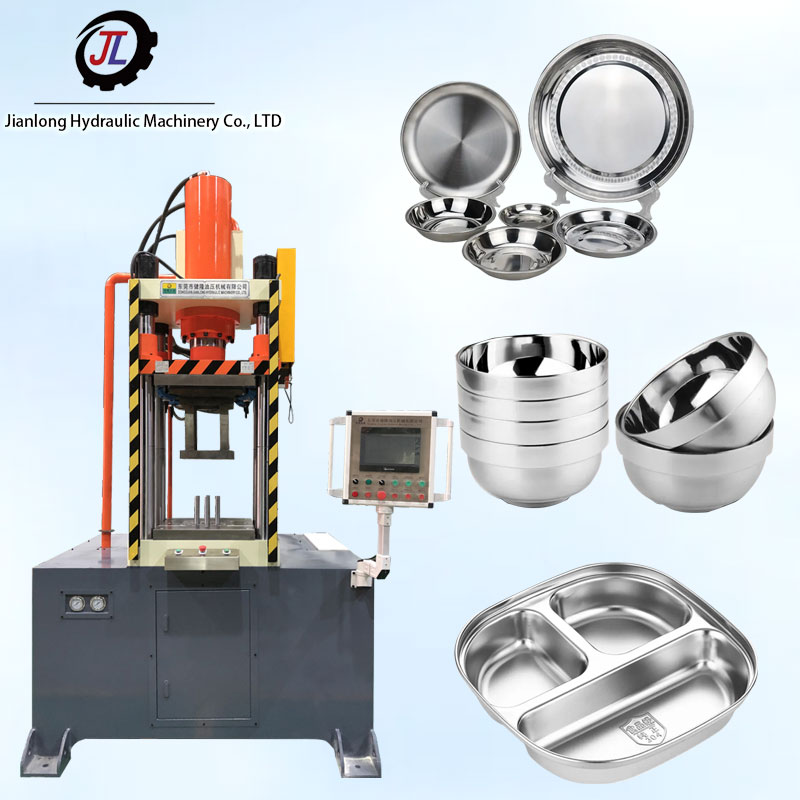

2.1 Stretching forming of tableware, kitchen sinks and pot liners, metal shells for motors and electrical appliances, housings for new energy inverters, automotive sheet metal stretch parts, cover plates, and decorative cover parts;

2.2 Stretching of stainless steel water tanks, thermos flask liners, stainless steel basins, aluminum sheet stretching, and pressing forming of aluminum and stainless steel products.

2.3 Stretching of metal or non-metal parts; also applicable to pressing, punching, and other processing operations.

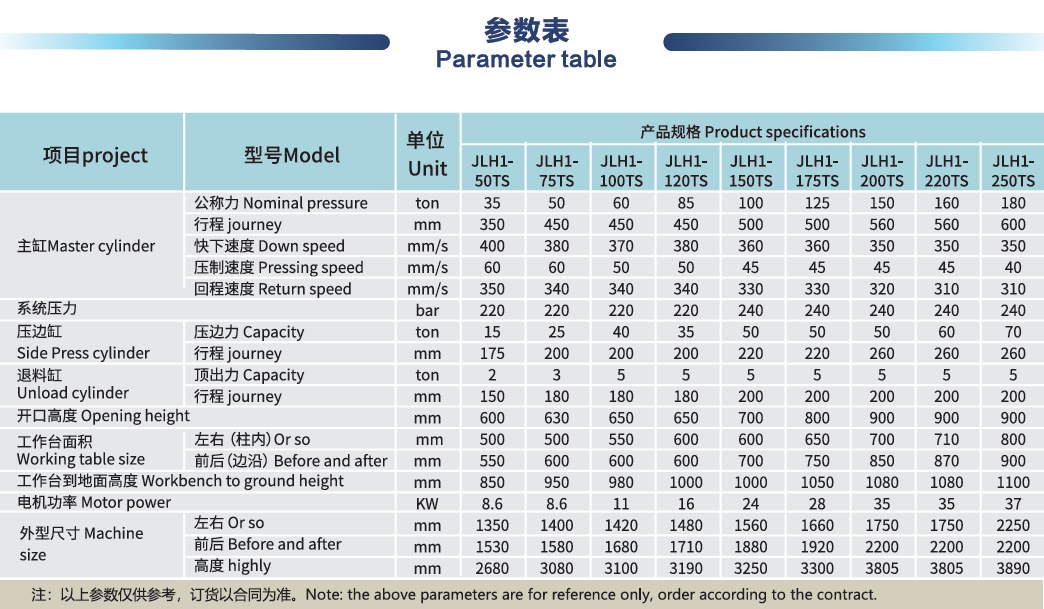

3. Technical Parameter Table：

For more information/suggestions on four-column double-action stretching hydraulic presses or to purchase other high-quality hydraulic presses, please contact us (or scan the following WhatsApp QR code). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
