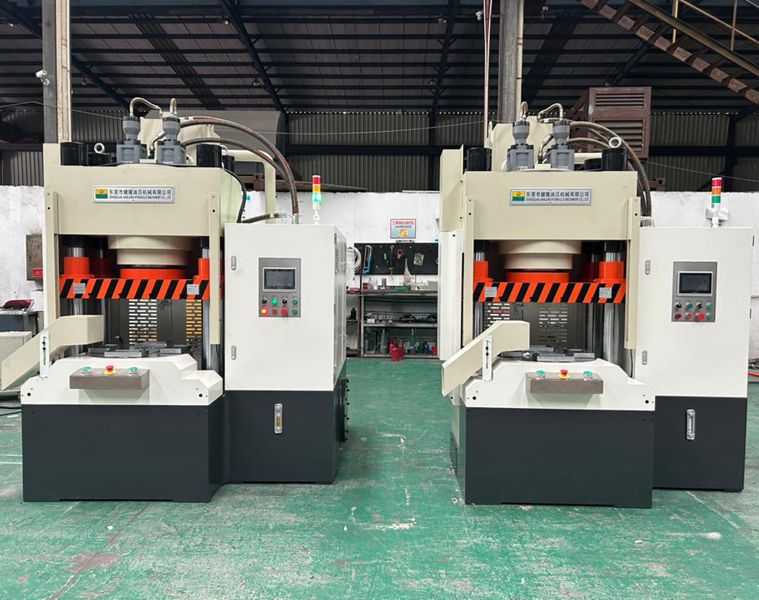

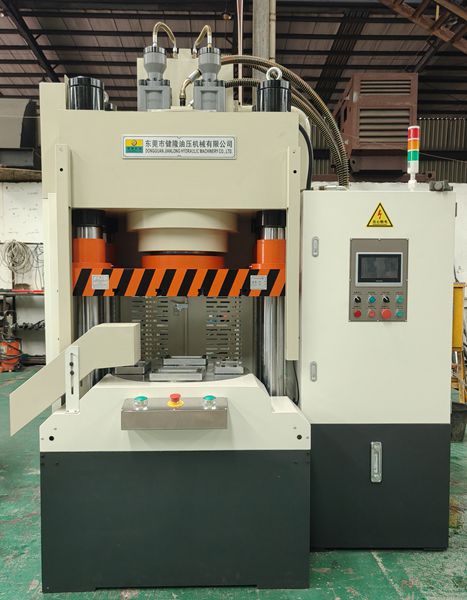

Introduction to the 200-Ton Rotary Multi-Station Hydraulic Press

The 200-ton rotary multi-station hydraulic press is a high-efficiency forming machine that integrates high-tonnage pressing force, a multi-station rotary table, and precision control systems. It utilizes a rotating worktable to facilitate the rapid transfer of workpieces between stations, allowing processes such as loading/unloading, machining, and inspection to occur simultaneously. This significantly boosts production efficiency and makes the machine particularly well-suited for the batch press-fitting, forming, and assembly of components. The following information is provided by the team at Jianlong Hydraulic Technology to assist you with your purchasing decisions.

1. Core Features and Technical Advantages

1.1 High-Efficiency Multi-Station Rotary Table: The heart of the machine is its rotary worktable, which can typically be configured with anywhere from 2 to 10 stations. This design eliminates the downtime associated with frequent loading and unloading in single-station operations. The rotary table is driven by either a hydraulic system or a servo motor; the latter offers superior positioning accuracy, achieving repeatability within ±0.02mm.

1.2 Powerful and Precise Pressure System: A nominal force of 200 tons is sufficient to handle the press-fitting, bending, punching, and forming of most medium-to-large components. An advanced hydraulic system, combined with PLC control and a touchscreen HMI, enables precise, stepless adjustment of pressure and speed. Control accuracy reaches the 0.02–0.03mm range, ensuring consistent product quality.

1.3 Flexible Control and Customization: The machine supports manual, semi-automatic, and fully automatic operating modes, adapting flexibly to various scenarios ranging from mold installation and debugging to mass production. Key parameters—such as the number of rotary table stations, press stroke, and pressure force—can be customized to meet specific customer process requirements.

2. Key Application Scenarios

This type of equipment is primarily used in mass production environments requiring efficient, repetitive operations, such as:

2.1 Hardware and Component Processing: Used for processes including press-fitting, sizing/reshaping, bending, punching, and riveting.

2.2 Tube and Profile Forming: Particularly suitable for tube and shaft component operations such as necking (reducing diameter), end forming, and multi-stage extrusion forming. 2.3 Automated Production Lines: The machine's structure facilitates the integration of robotic arms for automatic loading and unloading, enabling the creation of fully automated production lines.

If you are interested, please let us know what type of parts you plan to process (e.g., tube end reducing or sheet metal stamping). We can then analyze the suitability of this equipment for your specific application. Jianlong Hydraulic Technology currently offers custom-built hydraulic presses ranging from 10 to 5,000 tons (with optional accessories such as chillers and air compressors). All presses are CE certified and fully compliant with the EU Machinery Directive (2006/42/EC). Our products are exported to markets across Europe and the Americas, including Germany, the USA, Mexico, and Portugal. If you have any procurement needs, please contact us (or scan the WhatsApp QR code below); Jianlong Hydraulic Technology is dedicated to providing you with personalized, customized professional solutions.
