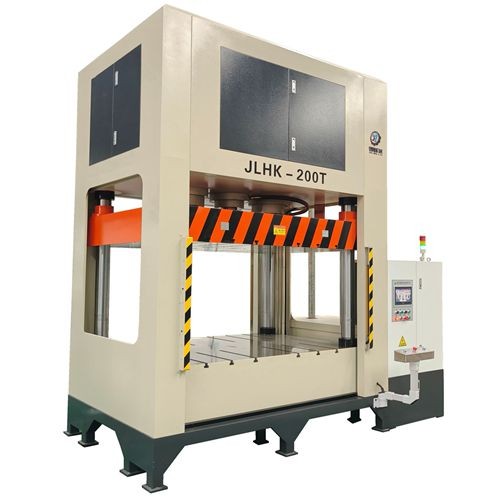

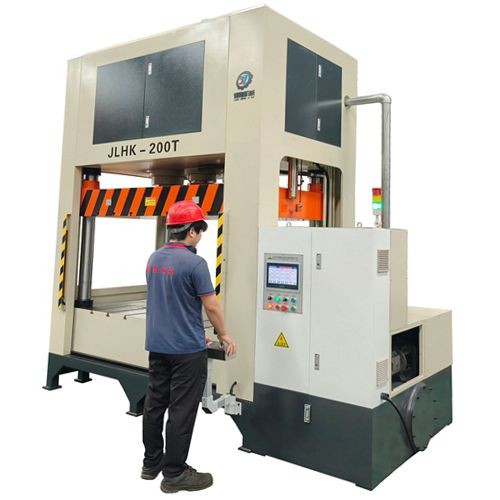

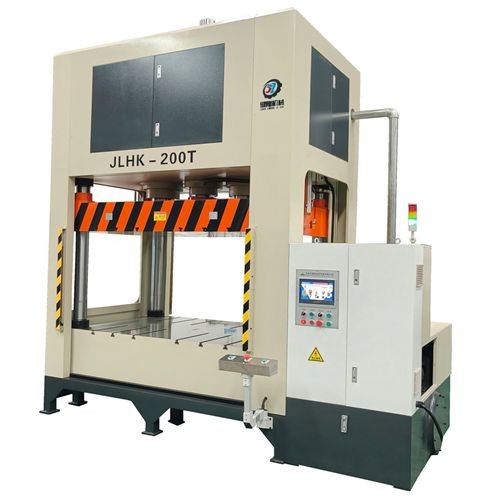

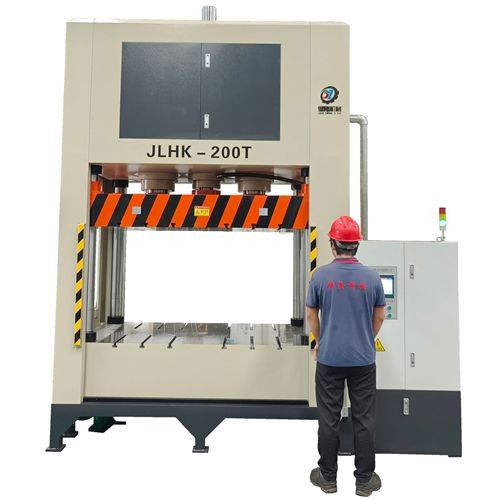

200-ton suitcase four-column hot pressing forming machine

200-ton suitcase four-column hot pressing forming machine

1. High efficiency: The use of child mother cylinder fast turn slow, empty line fast, high production efficiency.
2. Intelligent: imported hydraulic control system, pressure, stroke and pressure time can be adjusted according to the pressing process requirements.
3. Long service life: The use of servo motor imported from Italy, high frequency plus hard steel material, stable operation of the machine, long service life
4. Safety: The machine can be equipped with protective cover, fall prevention device, LED working light and infrared ray to improve the safety production index.

Four column servo jigsaw die cutting hydraulic press
Model project/ type		Unit	JLA2-200T	JLA2-300T	JLA2-500T	JLA2-600T
Nominal capacity		kn	2000	3000	5000	6000
Max.Working pressure		mpa	20	24	25	25
Main cylinder strok		kn	2000	3000	5000	6000
Max.Stroke of arm		mm	350	350	350	350
Max.Open height		mm	350	350	350	350
Speed of ram	Down no load	mm/s	180	170	170	160
	Pressing	mm/s	10	10	8	8
	Return	mm/s	170	160	150	150
Effective area of working table	RL(column inside)	mm	1100	1200	1400	1600
Effective area of working table	FB(edge)	mm	800	800	1000	1200
Overall dimension	LR	mm	1720	1850	2640	2850
	F.B	mm	1250	1250	1750	1850
	H	mm	2850	2870	2950	3100
Motor power		kw	7.5	11.0	18.5	23
Total weight(Approx)		ton	5.5	6.4	15.1	17.5
Oil quantity(Approx)		I	400	450	500	800
Note: the above parameters are for reference only, order according to the contract.

Technical features:

1. High efficiency: The use of child mother cylinder fast turn slow, empty line fast, high production efficiency.

2. Intelligent: imported hydraulic control system, pressure, stroke and pressure time can be adjusted according to the pressing process requirements.

3. Long service life: The use of servo motor imported from Italy, high frequency plus hard steel material, stable operation of the machine, long service life

4. Safety: The machine can be equipped with protective cover, fall prevention device, LED working light and infrared ray to improve the safety production index.

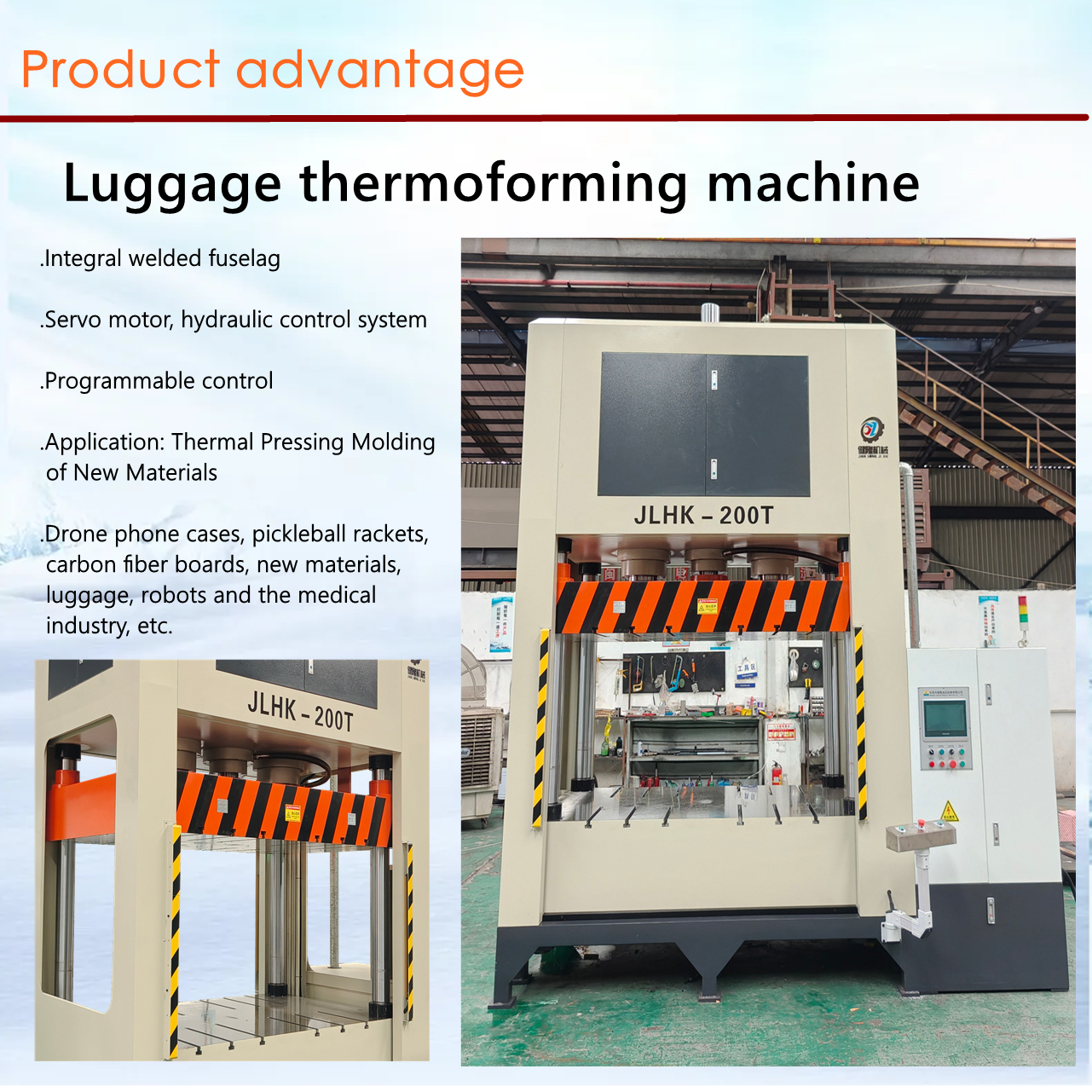

英1.png 英2.png 英3.jpg

Scope of application:

EVA luggage industry

EVA suitcase thermoforming process

EVA Toolbox Forming Process

EVA Digital Storage Box Mold

EVA eyeglass case and headphone storage case have been finalized.

2. PU/Leather Bag and Suitcase Industry

PU leather luggage mold forming process

Leather travel bag pressing and shaping

Leather cosmetic case shaping

3. The luggage industry

The outer shell of the suitcase is formed by hot pressing.

Arc-shaped shaping of the outer panel of the box body
