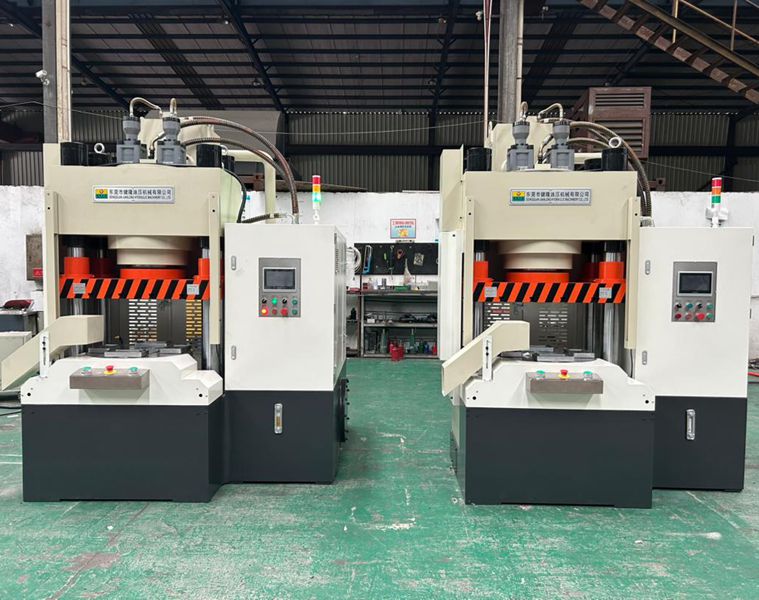

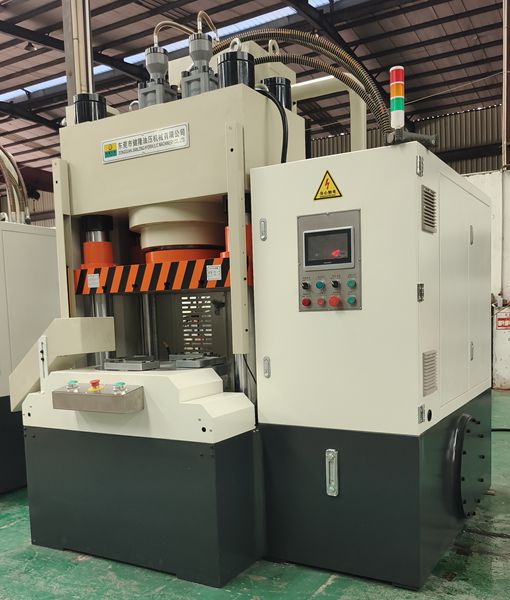

Application of the 200-Ton Rotary Multi-Station Hydraulic Press in the Tube and Profile Forming Industry

The core value of the 200-ton rotary multi-station hydraulic press in the tube and profile forming industry lies in its combination of high-tonnage force, an automatic multi-station rotary table, and process optimization tailored to tubes and profiles. This creates a high-efficiency, high-precision forming solution suitable for complex manufacturing sequences. The equipment is particularly well-suited for parts requiring multiple forming stages, such as automotive tubular components, bicycle frame tubes, and structural profiles. Below, Jianlong Hydraulic Technology shares insights into its specific applications across several key dimensions:

1. Core Application Scenarios: Tube end forming and complex processing

1.1 Tube Swaging, End Forming, and Multi-Stage Extrusion: The equipment performs efficient forming processes—such as swaging, flaring, and upsetting—on the ends of tubes, shafts, and profiles. Notably, its 10-station rotary table enables multi-stage (multi-station) repetitive extrusion forming within a single work cycle, greatly simplifying the production process for complex tube-end components.

1.2 Integrated Punching, Cutting, and Bending: Equipped with various dies, the machine integrates functions such as punching, cutting, notching, and bending across different stations on the same rotary table, enabling "synchronized multi-process machining" of tubes and profiles. It is widely used in industries requiring tube processing, such as the manufacture of hand tools (e.g., socket wrenches) and bicycle parts.

2. Technical Principles: Why it is suitable for tube and profile forming

2.1 "Rotary Table + Station" Automation Logic: The machine features a circular rotary table with multiple stations (typically 2 to 48, depending on the design). Operators can safely load and unload parts at stations outside the pressing zone; the table rotates to feed workpieces into the pressing position while auxiliary operations are performed at other stations.

2.2 Eliminating "Waiting Waste": With traditional single-station hydraulic presses, the equipment sits idle during loading and unloading. The rotary table design enables the "loading-pressing-unloading" sequence to occur concurrently, significantly boosting equipment utilization and directly translating into higher production efficiency.

3. Advantages of the 200-ton class: A balance of "power" and "precision"

The 200-ton nominal force provides ample power for forming tubes and profiles.

3.1 Capable of handling high-strength materials: Sufficient for forming lightweight materials such as high-strength steel and aluminum alloys, as well as processing profiles with thick walls or large cross-sections.

3.2 Suitable for complex processes: Capable of executing processes requiring high precision and pressure control, such as solid particle medium forming, hydroforming, and other specialized forming techniques.

3.3 Ensures precision control: Advanced systems achieve slide positioning accuracy within 0.02 mm, ensuring highly consistent dimensions for formed tube ends.

4. Examples of typical application scenarios

4.1 Automotive parts: Forming and punching components such as chassis tubes, intake and exhaust pipes, and seat frame profiles.

4.2 Bicycles/Sports equipment: Key processes for frame tubing, including tube end reduction, flattening, and punching.

4.3 Construction and structural profiles: End forming, punching, and bending of steel structures and aluminum alloy profiles.

4.4 Hardware products: High-volume, efficient production of various pipe fittings and hardware tools.

5. Selection and considerations

5.1 Clarify process requirements: Detail all operations to be performed on a single machine (e.g., tube reduction, punching, bending, sizing) to customize the number of rotary table stations and the tooling configuration.

5.2 Consider automation setup: Evaluate the need for integrated robotic loading and unloading to achieve truly unmanned, continuous, and high-speed production.

5.3 Manufacturer customization capabilities: Since such equipment is typically customized for specific workpieces, it is crucial to select a manufacturer with extensive experience in the tube and profile industry and strong capabilities in non-standard customization.

If you have specific part samples or drawings, please provide details regarding the tubing material, wall thickness, and the required processing steps. We can then analyze whether this equipment is suitable for your needs and offer recommendations on workstation layout. Jianlong Hydraulic Technology currently offers custom-built hydraulic presses ranging from 10 to 5,000 tons (with optional accessories such as chillers and air compressors). All our presses are CE certified and fully compliant with the EU Machinery Directive (2006/42/EC). Our products are exported to markets across Europe and the Americas, including Germany, the USA, Mexico, and Portugal. If you are interested in our products, please contact us (or scan the WhatsApp QR code below); Jianlong Hydraulic Technology is dedicated to providing you with personalized, customized professional solutions.
