Technical Specifications for the Stem Forging Hydraulic Press

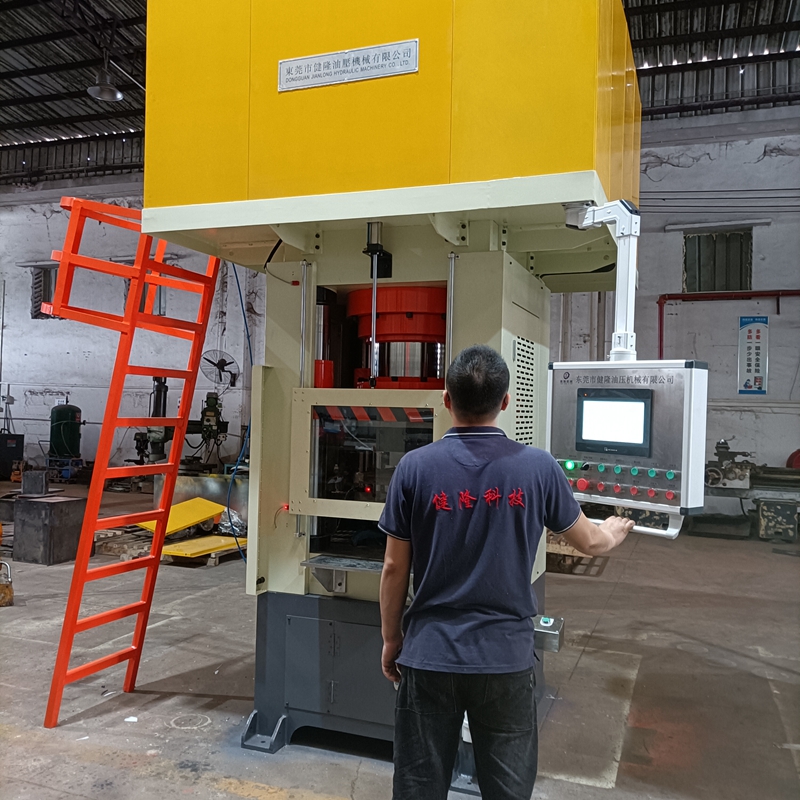

The "Stem Forging hydraulic press," developed and manufactured by Jianlong Hydraulic Technology, is specialized equipment designed for the hot, warm, and precision die-forging of aluminum alloy components such as bicycle stems, handlebars, and seat posts. Featuring a highly rigid four-column or frame-type structure and a servo-hydraulic control system, the press enables constant-pressure, constant-displacement, and multi-stage speed control, thereby meeting the demands for high-precision and high-efficiency forging production. The following information is provided by the team at Jianlong Hydraulic Technology to assist with your procurement decisions:

1. Key Technical Parameters (Reference)

1.1 Nominal Force: 500T – 3000T (Customizable)

1.2 Hydraulic System Pressure: 25 MPa – 31.5 MPa

1.3 Main Cylinder Configuration: Single/Double/Multi-cylinder (Customized based on process requirements)

1.4 Slide Stroke: 500 – 1000 mm

1.5 Maximum Daylight (Opening Height): 800 – 1500 mm

1.6 Table Dimensions: Customized based on mold size

1.7 Slide Speed: Rapid approach, slow pressing, dwell (holding), rapid return

1.8 Pressing Precision: ±0.05 – ±0.10 mm

1.9 Control Method: PLC + Touchscreen

1.10 Operation Mode: Manual, semi-automatic, fully automatic

1.11 Drive System: Servo energy-saving hydraulic system (Optional)

1.12 Power Supply: AC 380V, 50Hz (Three-phase)

1.13 Safety System: Two-hand push-button control, light curtain protection, emergency stop, safety gate interlock

2. Main Equipment Configuration

2.1 Main Unit

· High-strength, integrally welded frame

· High-precision guide pillars and bushings

· High-frequency quenched and chrome-plated piston rods

· High-quality hydraulic cylinders

· High-rigidity moving bolster (slide)

2.2 Hydraulic System

· High-performance hydraulic pump

· Integrated cartridge valve system

· Proportional pressure control

· Automatic oil cooling system

· High-precision filtration system

2.3 Electrical Control System

· PLC intelligent control system

· Human-Machine Interface (HMI)

· Parameter storage function

· Recipe management

· Automatic fault diagnosis

· Remote maintenance (Optional)

2.4 Automation Configuration (Optional)

Customizable to specific needs; options include automatic loading manipulators, automatic part-unloading robots, automatic mold release agent spraying systems, automatic conveyor lines, automatic trimming hydraulic presses, in-line visual inspection systems, MES data management systems, etc.

3. Applicable Products

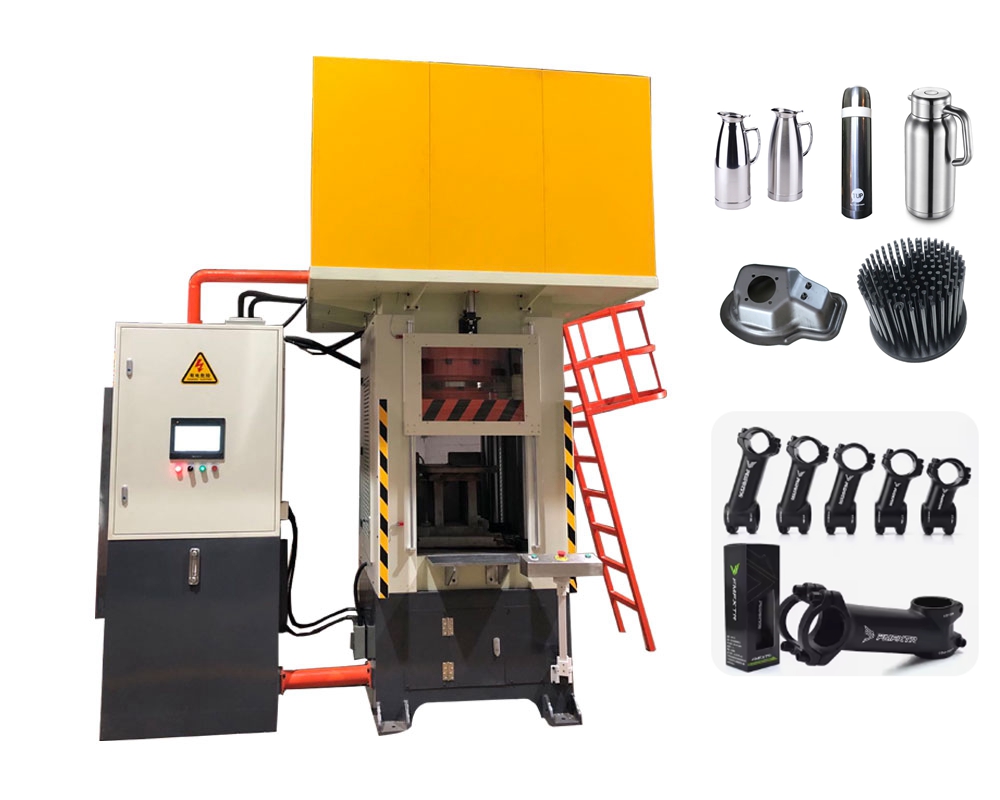

The equipment is widely used for: bicycle stems (including mountain bike, road bike, and BMX models), bicycle handlebars, bicycle seat posts, electric vehicle stems, aluminum alloy motorcycle parts, and other precision aluminum alloy forgings.

4. Equipment Features

4.1 Specialized for precision aluminum alloy die forging

4.2 High dimensional consistency of forgings

4.3 Dense microstructure and excellent mechanical properties in finished parts

4.4 Adjustable pressure, speed, and stroke

4.5 Easy die changing for increased production efficiency

4.6 Intelligent PLC control for simple operation

4.7 Capable of unmanned, automated production

4.8 Energy-efficient with stable, reliable operation

4.9 Supports non-standard customization and turnkey production line solutions

5. Applicable Forging Processes

5.1 Hot forging

5.2 Warm forging

5.3 Precision die forging

5.4 Closed-die forging

5.5 Multi-directional forging

5.6 Continuous pre-forging and finish-forging production

Jianlong Hydraulic Technology specializes in hydraulic presses for bicycle stem forging and comprehensive automated forging production line solutions, providing high-quality hydraulic equipment to global customers. We offer one-stop customized services based on specific product processes, including factory-wide forging solution planning, non-standard hydraulic press design, matching die design, automated production line integration, process optimization, technical support, installation, commissioning, and after-sales training. Currently, Jianlong Hydraulic Technology can customize hydraulic presses ranging from 10 to 5,000 tons (complete with automated production lines, chillers, air compressors, etc.). All hydraulic presses are CE certified and fully compliant with the EU Machinery Directive (2006/42/EC). Our products are exported to Europe and the Americas, including markets such as Germany, the USA, Mexico, and Portugal. Please contact us if you have any inquiries or purchasing needs (you may also scan the WhatsApp QR code below); Jianlong Hydraulic Technology is dedicated to providing you with personalized, professional, and customized solutions.
