Technical Features of a 40-Ton C-Type Hydraulic Press

The core technical features of the 40-ton C-type hydraulic press are mainly reflected in its open-frame structure, flexible hydraulic and control system, and diverse process adaptability. Below is a summary from Jianlong Hydraulic Technology for your reference!

1. Structural Design

1.1 C-Type Single-Arm Open-Frame Structure

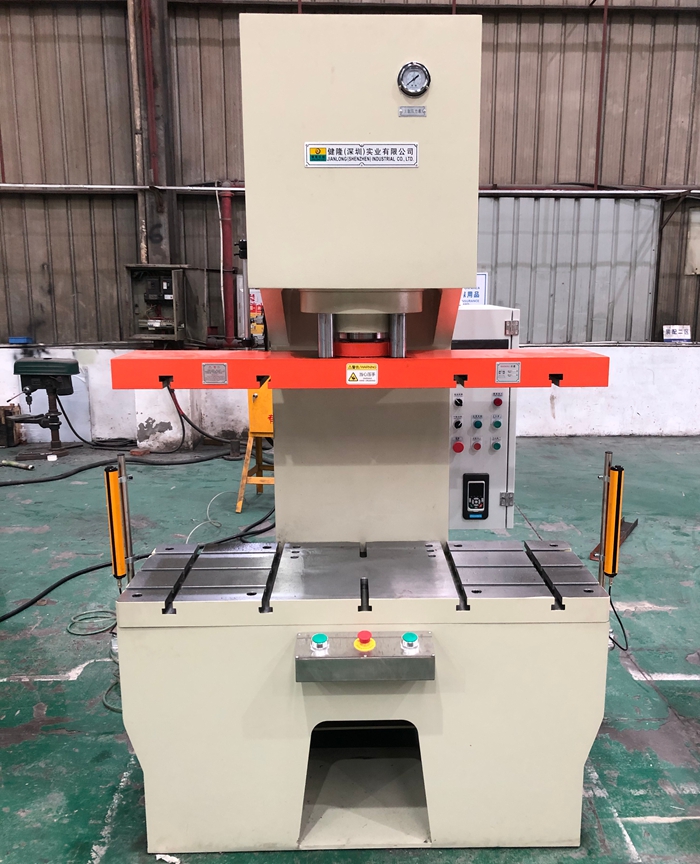

The machine body is C-shaped, open on three sides, facilitating the loading, unloading, and operation of large or irregularly shaped workpieces.

1.2 High-Rigidity Steel Plate Welding

The entire machine is constructed from welded steel plates and tempered to ensure the machine body does not deform under high loads.

2. Hydraulic System

2.1 Dual-Speed Pressing Technology

It features dual-speed pressing: "fast advance - working advance." When unloaded, it quickly approaches the workpiece; during working advance, it slowly increases pressure, balancing efficiency and accuracy.

2.2 Overload Protection and Integrated Control

It has built-in hydraulic overload protection and mostly uses a two-way cartridge valve integrated system, ensuring reliable operation and minimizing leakage points.

3. Control and Precision

3.1 Multiple Operation Modes

Supports multiple modes including "adjustment, manual, and semi-automatic." In semi-automatic mode, "constant pressure" or "constant stroke" control is available.

3.2 High-Precision Control System

Some models are equipped with a PLC and HMI, enabling precise adjustment and real-time monitoring of pressure, stroke, and speed.

4. Process Capabilities

4.1 Excellent Process Versatility

Multi-functional, capable of performing various processes such as straightening, press fitting, bending, blanking, punching, and shallow drawing.

4.2 Wide Adjustable Parameter Range

The pressure, stroke, and opening height of the slider can be flexibly adjusted according to the requirements of the mold and workpiece.

5. Structural Highlights

5.1 Three-Sided Operating Space

Operators can access the worktable from the front, left, and right of the machine, making loading and unloading molds and workpieces very convenient.

5.2 Off-Center Load Resistance

Some models adopt a four-column guide structure, which can better withstand eccentric loads and is suitable for applications with higher precision requirements.

In summary, the core advantages of the 40-ton C-type hydraulic press lie in its open structure and flexible functionality. It is ideal for applications requiring shaft part straightening, bushing press-fitting, or sheet metal bending and punching. Its open structure is particularly beneficial for long shaft parts or workstations requiring multi-person collaboration. Currently, Jianlong Hydraulic Technology can customize hydraulic presses ranging from 10 to 5000 tons. If you have any questions or suggestions regarding the 40-ton C-type hydraulic press, or if you need to purchase a high-quality hydraulic press, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
