Technical Specifications of Jianlong Hydraulic Presses for Puzzle Die-Cutting

The puzzle die-cutting hydraulic press represents a specialized application of hydraulic technology within the field of puzzle toy manufacturing. Unlike standard die-cutting machines, puzzle die-cutting demands exceptionally high punching precision—specifically because the interlocking "teeth" of the puzzle pieces must fit together seamlessly; even a slight deviation can result in an ill-fitting assembly or loose connections. Below, the editorial team at Jianlong Hydraulic Technology shares the core technical specifications for Jianlong's two major series of puzzle die-cutting hydraulic presses, covering detailed parameters for both the Frame-Type Puzzle hydraulic press (JLP Series) and the Servo-Controlled Dual-Station Sliding Table Puzzle Machine (JLA Series). These details are provided to serve as a valuable reference for your procurement decisions!

1. Product Series Overview

Based on tonnage, structural design, and level of automation, puzzle die-cutting hydraulic presses are primarily categorized into two major series:

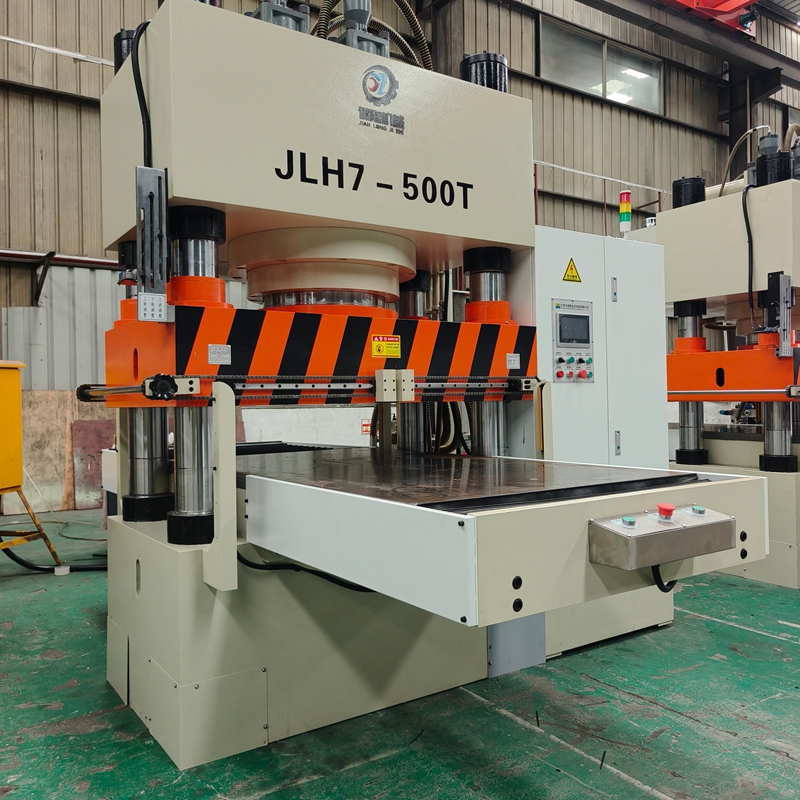

1.1 Frame-Type Puzzle hydraulic press (JLP Series)

· Model Range: 300T -1000T

· Structural Features: Four-column structure; characterized by high speed and high precision; equipped with safety light curtains.

· Applicable Scenarios: Die-cutting of puzzles made from paper, white cardstock, blue cardstock, or thin wooden boards.

1.2 Servo-Controlled Dual-Station Sliding Table Type (JLA Series)

· Model Range: 300T -1200T

· Structural Features: Servo-controlled system; features a dual-station sliding table design for enhanced efficiency.

· Applicable Scenarios: High-volume mass production; specifically designed for paper and wooden puzzles.

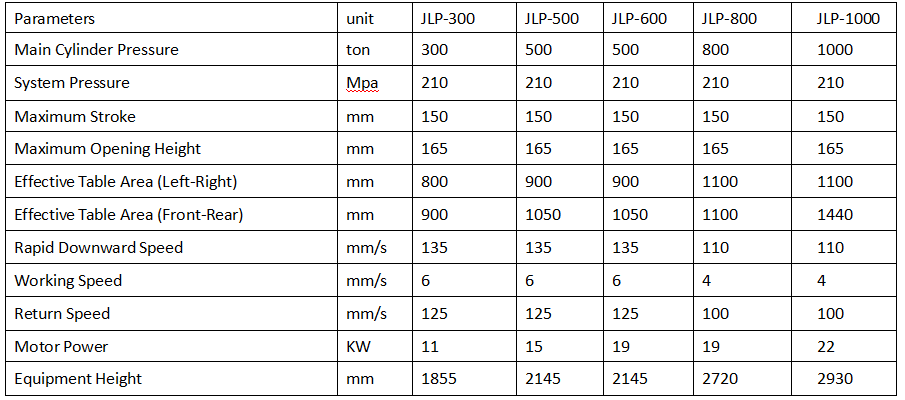

2. Technical Parameters: Frame-Type Puzzle hydraulic press (JLP Series)

Suitable for standard puzzle die-cutting requirements within the 300–1000 ton range:

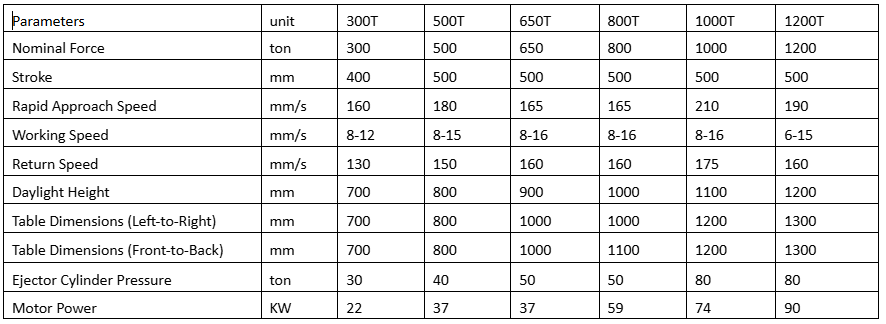

3. Technical Parameters: Servo-Controlled Dual-Station Sliding Table Puzzle Machine (JLA Series)

Suitable for high-efficiency, automated production requirements within the 300–1200 ton range:

4. Core Configuration and Technical Features

4.1 Mechanical Structure

· Machine Frame: Features high precision, excellent rigidity, and strong resistance to lateral forces; particularly well-suited for pressing products that require high precision or possess asymmetrical shapes.

· Four Columns: Constructed from high-strength alloy steel with a hard chrome-plated surface finish; offers superior wear resistance and high guiding precision.

· Hydraulic Cylinder: Integrally forged and precision-ground; offers superior reliability under high-pressure operating conditions.

4.2 Hydraulic and Electrical Systems

· Motor: Renowned Taiwanese brand; features low noise and high performance.

· Solenoid Valves: Originally imported from Germany.

· Servo Motor: Imported servo motor (for servo-driven models).

· Core Electrical Components: Internationally renowned brands.

· Hydraulic Circuit Design: Integrated hydraulic manifold block design to minimize system friction.

· Cooling System: Water-cooling device to maintain a constant hydraulic oil temperature.

4.3 Control System

· Standard Model: PLC control with a clear and intuitive operator panel.

· Servo Model: Touchscreen operation interface supporting multiple languages, featuring a multi-set data storage function.

· Automatic Lubrication: A centralized automatic lubrication system is applied to all sliding connection points.

4.4 Precision Parameters

· Cutting Depth Accuracy: ≤ 0.2mm; achieved through a four-cylinder, precision six-column, double-toggle automatic balancing mechanism.

· Alignment Accuracy: ± 2mm; achieved through variable-frequency control for material feeding and take-up.

· Die-cutting Accuracy: ± 0.075mm; applicable to fully automatic models.

4.5 Safety Configuration

· Safety light curtains (electronic eyes) installed at both the front and rear.

· Equipped with safety guards and protective netting.

· Six-point safety protection mechanism.

· Multi-layered safety design ensuring a higher safety factor.

4.6 Other Features

· Working stroke, pressing duration, and pressure levels are all adjustable.

· Worktable dimensions, stroke length, daylight opening height, and other specifications can be customized to non-standard requirements.

· Dual-motor automatic feeding mechanism (positioned on both sides) boosts operational efficiency by 80%.

· Available in both standard and custom-configured versions.

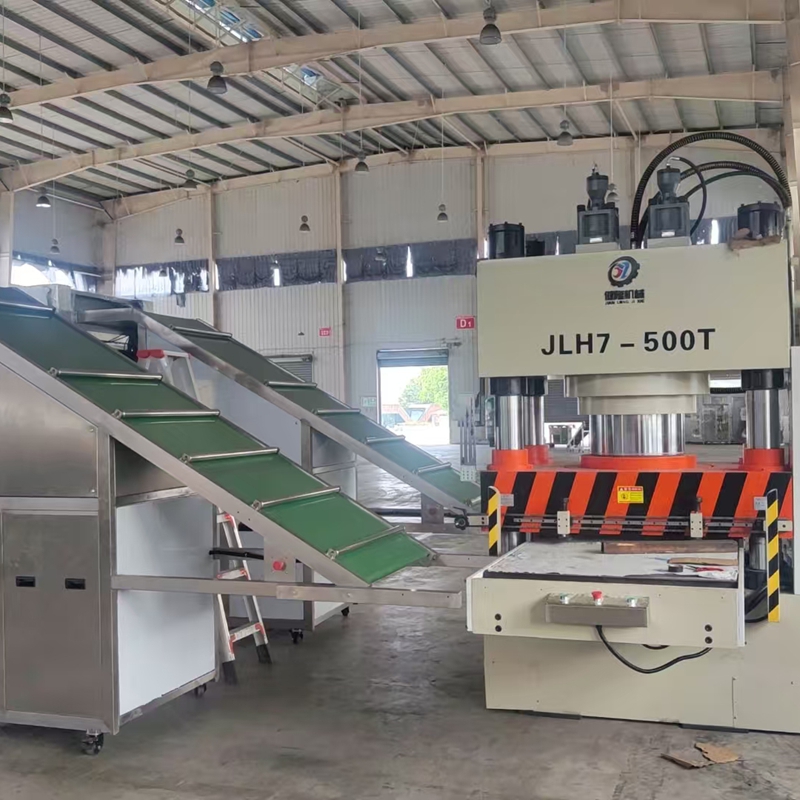

· Available as either a semi-automatic or fully automatic production line.

5. Selection Recommendations

· Standard Paper/Cardboard Puzzles: JLP Series (300–500T)

· Thick Wood/Multi-layer Materials: JLP Series (800T and above) or JLA Series

· High-Volume Automated Production: JLA Series Servo Dual-Station Models

· Small-Batch Production/Prototyping: Small Cutting Machines (60–100T)

· Products with Special Dimensions: Non-standard customization is available; parameters such as workbench size, stroke, and daylight opening height can be tailored to meet specific client requirements.
