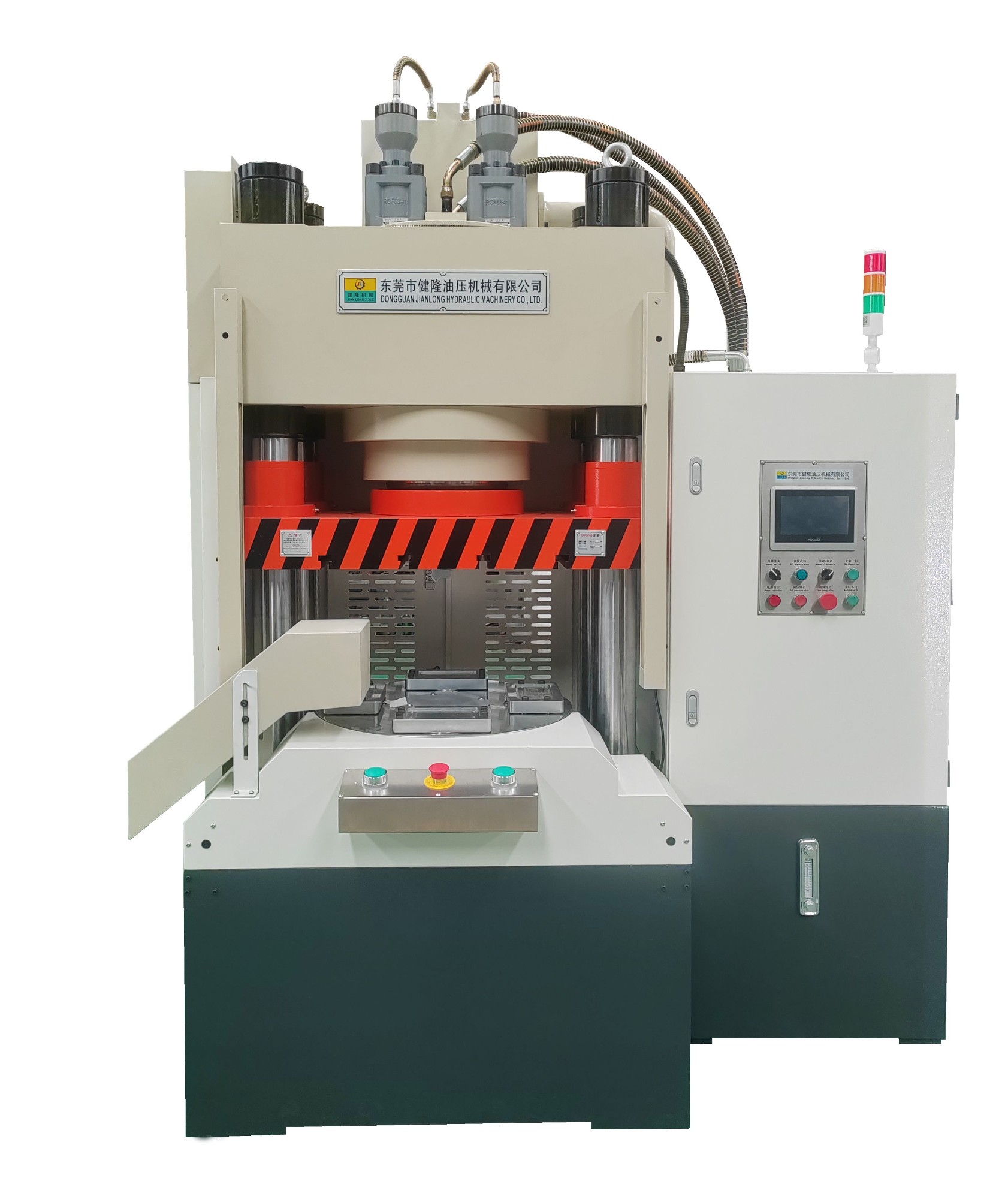

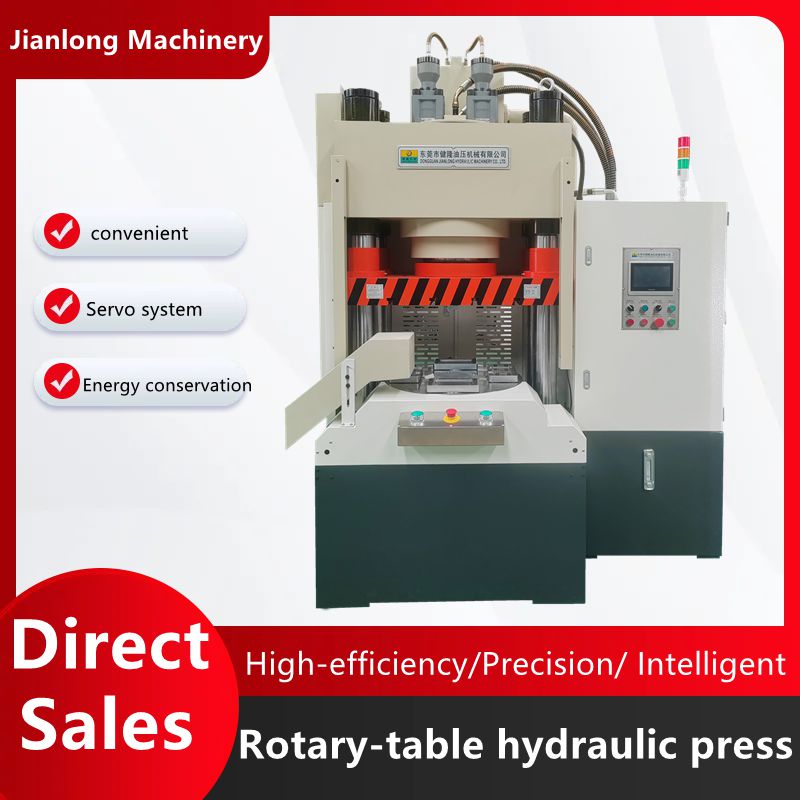

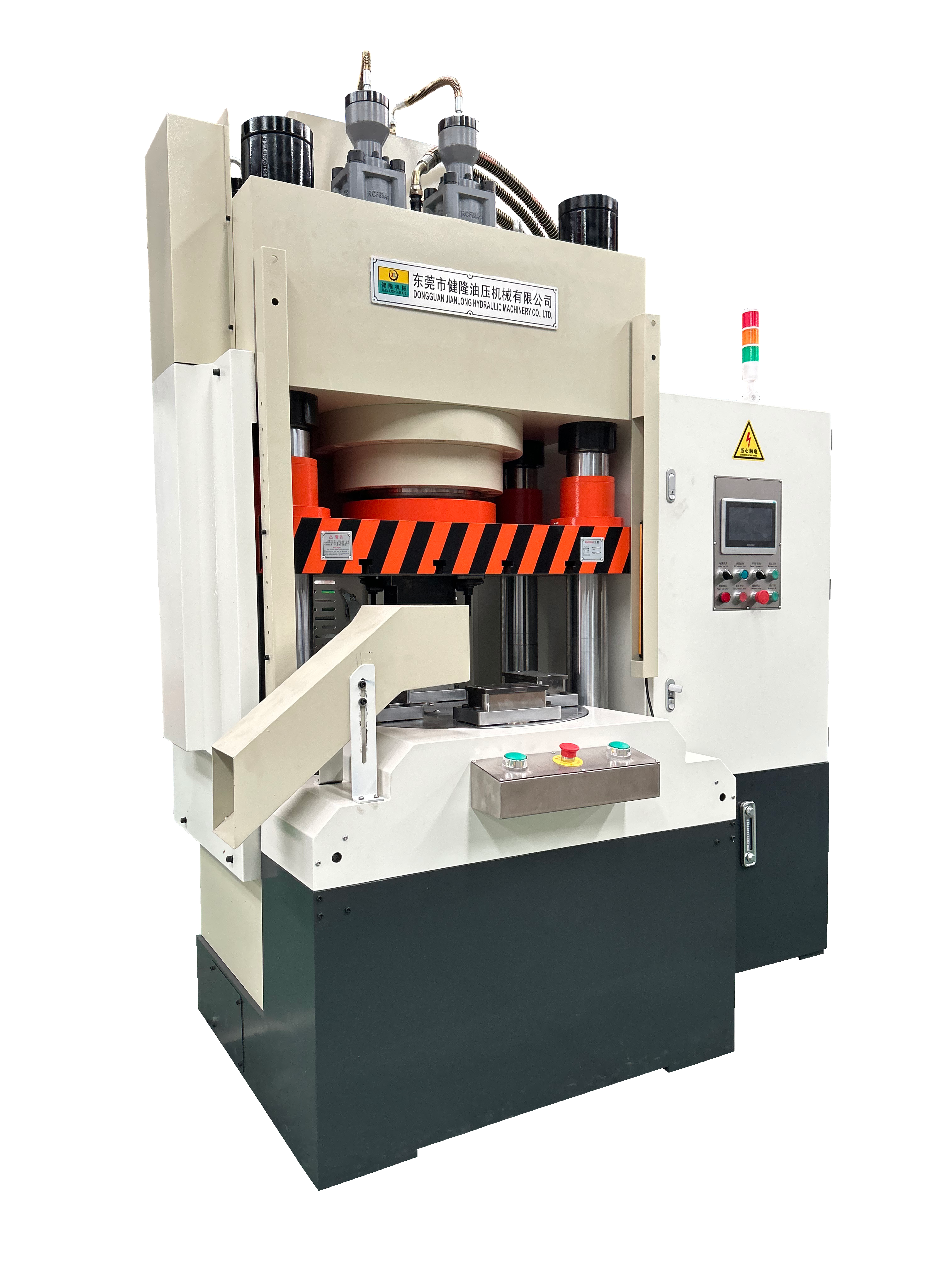

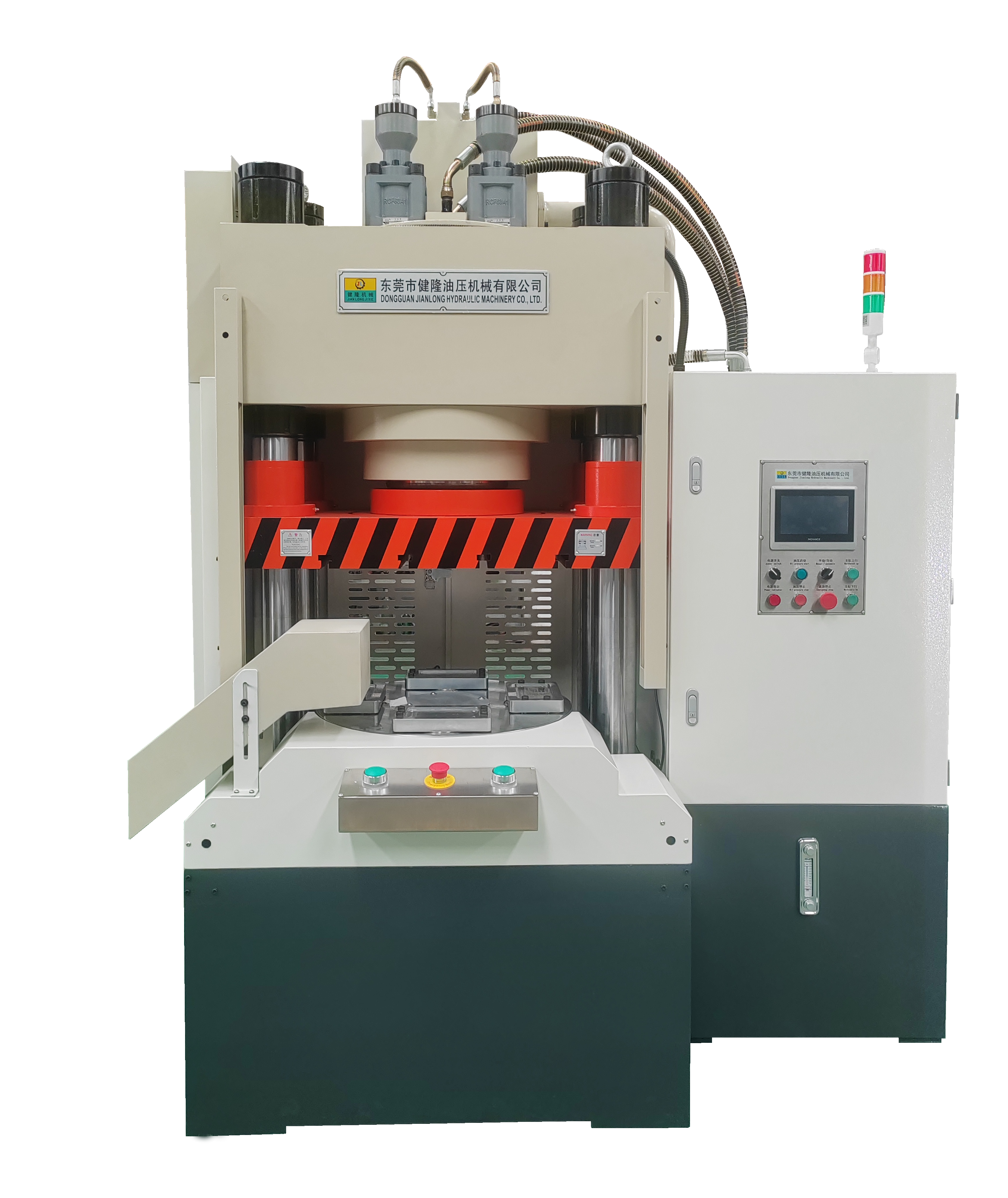

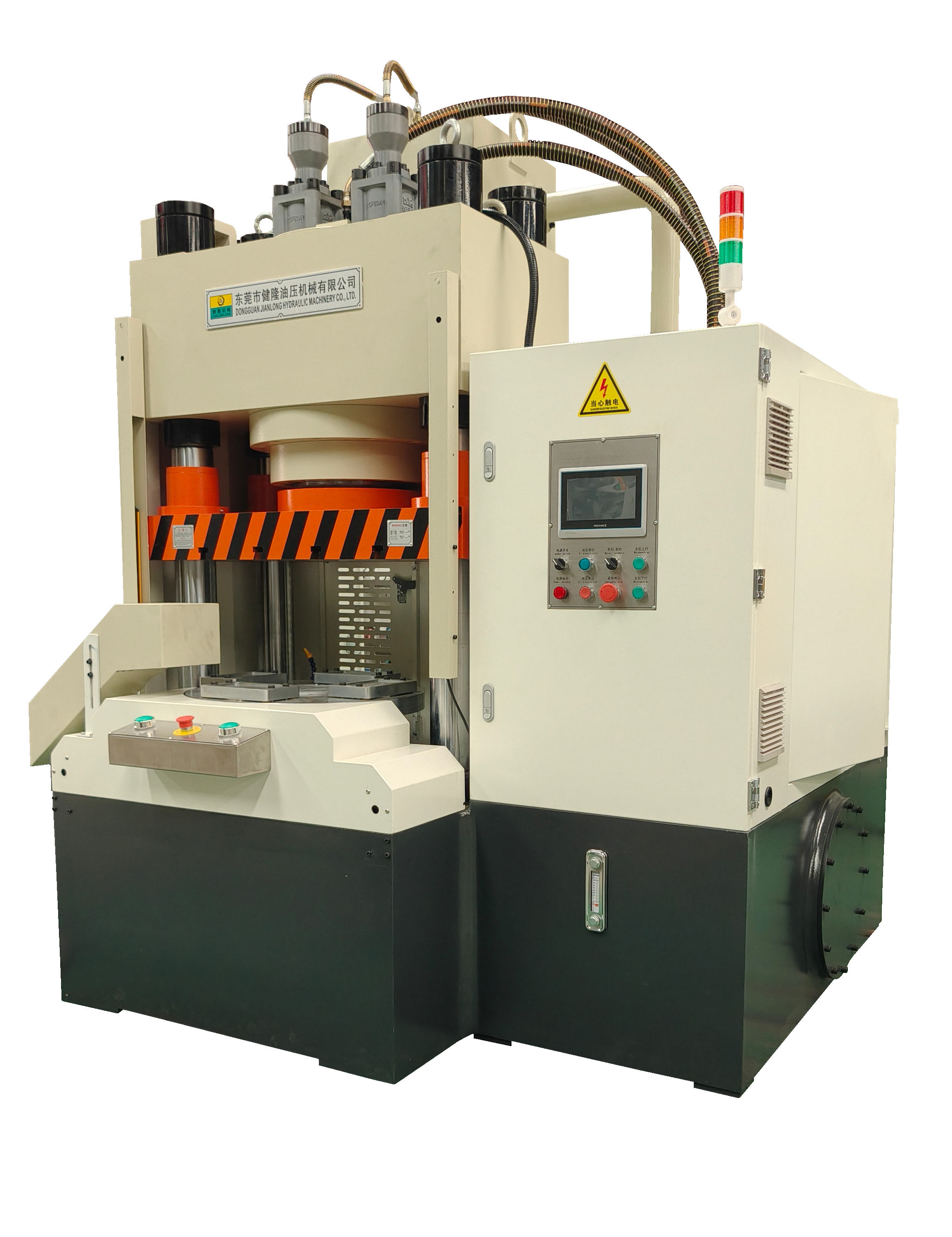

200 ton turntable hydraulic press

High-efficiency rotary multi-station processing equipment. The rotary table supports continuous feeding, positioning and pressing. Its rotating worktable realizes seamless multi-station processing to lift productivity, perfectly suited for mass continuous production.

Four column servo jigsaw die cutting hydraulic press
Model project/ type		Unit	JLA2-200T	JLA2-300T	JLA2-500T	JLA2-600T
Nominal capacity		kn	2000	3000	5000	6000
Max.Working pressure		mpa	20	24	25	25
Main cylinder strok		kn	2000	3000	5000	6000
Max.Stroke of arm		mm	350	350	350	350
Max.Open height		mm	350	350	350	350
Speed of ram	Down no load	mm/s	180	170	170	160
	Pressing	mm/s	10	10	8	8
	Return	mm/s	170	160	150	150
Effective area of working table	RL(column inside)	mm	1100	1200	1400	1600
Effective area of working table	FB(edge)	mm	800	800	1000	1200
Overall dimension	LR	mm	1720	1850	2640	2850
	F.B	mm	1250	1250	1750	1850
	H	mm	2850	2870	2950	3100
Motor power		kw	7.5	11.0	18.5	23
Total weight(Approx)		ton	5.5	6.4	15.1	17.5
Oil quantity(Approx)		I	400	450	500	800
Note: the above parameters are for reference only, order according to the contract.

Technical features:

1. High-rigidity four-column frame with high guiding precision and strong lateral force resistance. The four columns are made of high-strength alloy steel with hard chrome plating for excellent wear resistance.

2. Integrally forged and precision-ground hydraulic cylinder, delivering stable leak-free performance under long-term 200-ton high-pressure working conditions.

3.Rotary indexing multi-station turntable enables continuous feeding, positioning and pressing. Its three-sided open workspace simplifies loading, unloading and mold change to boost batch production efficiency.

4. Servo energy-saving hydraulic system paired with a 2.0mm steel PLC touch control cabinet, equipped with infrared safety light curtains and intelligent maintenance reminders, supporting 24-hour stable production and automatic line expansion.

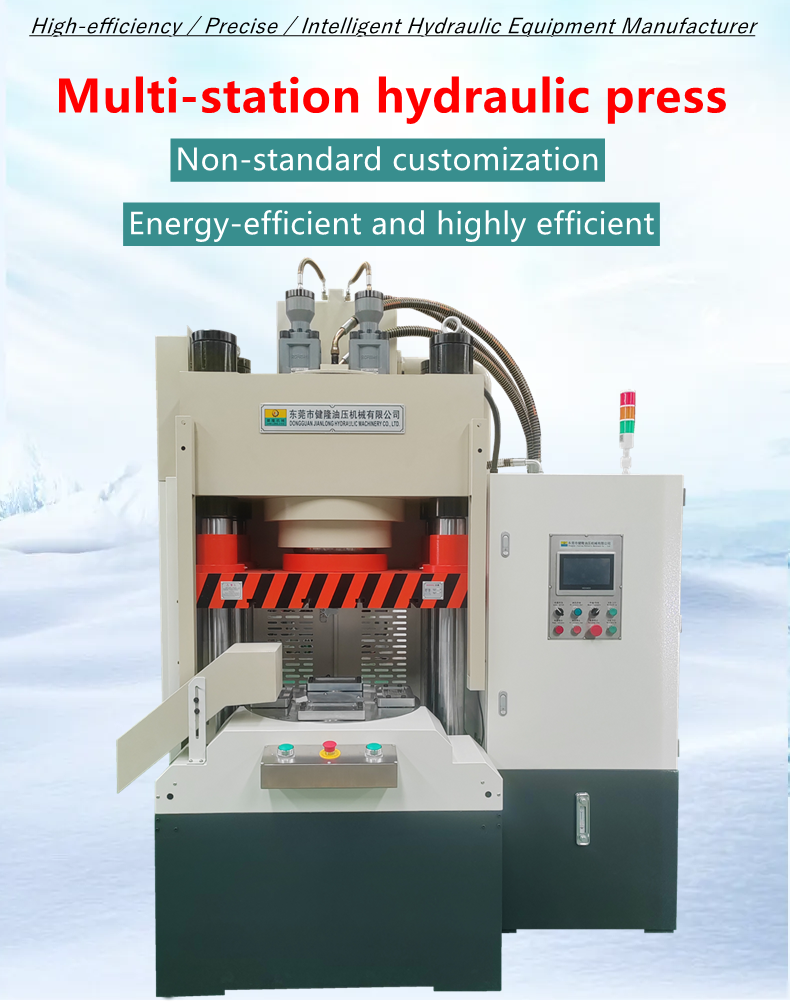

Multi-station <a href=https://www.jlcpress.com/product/500-tons-of-badges-MEDALS-automatic-hydraulic-press.html target='_blank'>hydraulic press</a>1.png

Scope of application:

EVA Luggage & Storage Box IndustryEVA suitcase thermoformingEVA toolbox moldingEVA digital accessory storage box formingEVA eyewear case & headphone case shaping
PU & Leather Luggage Bag IndustryPU leather luggage mold hot pressingLeather travel bag embossing & shapingLeather cosmetic case thermoforming
Hard Shell Luggage IndustryHot pressing molding for suitcase outer shellsArc bending forming of luggage exterior panels
Carbon Fiber Composite IndustryCarbon fiber helmet inner lining moldingFiberglass & SMC composite part curing formingSports protective gear hot pressing
Automotive & Hardware Die-casting IndustryAluminum alloy die-casting trimmingAuto bushings, brake pads precision press-fittingLightweight auto component straightening
Electronic & Silicone Rubber IndustryNew energy motor stator & rotor assemblySilicone sealing parts molding & deburringPlastic housing hot embossing
Sports & Medical Equipment IndustryCarbon fiber sports gear formingMedical polymer protective pad moldingRehabilitation support thermoforming
Powder Metallurgy IndustryMetal & ceramic powder compact forming
