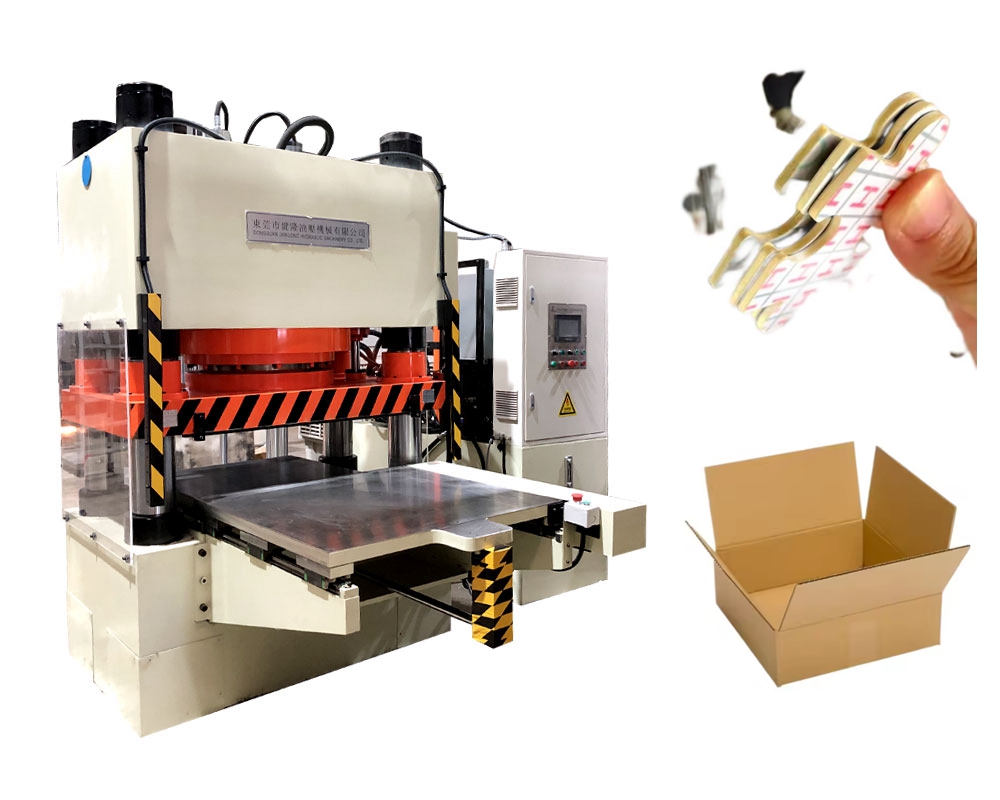

Applications of Hydraulic Jigsaw Die-Cutting Presses in the Flexible Materials Industry

Hydraulic jigsaw die-cutting presses are critical equipment for the precision processing of flexible materials. Their core advantage lies in the ability to use high precision and high pressure to die-cut multi-layer or large sheets of flexible material into interlocking puzzle pieces or complex contours in a single operation. Below, the team at Jianlong Hydraulic Technology shares several key application areas within the flexible materials sector for your reference:

1. Key Application Areas and Materials

1.1 Traditional Jigsaw Puzzles and Cultural/Creative Products: This is the most direct application. The equipment is specifically designed to punch and cut materials such as paper, white cardstock, and wood to produce high-precision puzzle pieces. It is also suitable for the compression molding of wooden puzzles, the die-forming of cardboard puzzles, and the pressing of thin metal sheets (e.g., for DIY souvenirs) into puzzle shapes.

1.2 Electronic Products and Precision Components: In the electronics industry, high-speed hydraulic die-cutting machines are widely used to cut flexible components such as adhesive-backed materials, dust-proofing materials, shock-absorbing products, and insulation materials. Examples include cutting mobile phone adhesive pads, conductive adhesives, filter foam, PORON pads, and EVA foam. Additionally, they are used for the panel-level punching and cutting of flexible printed circuits (FPCs), a process requiring extremely high precision and cleanliness.

1.3 Automotive and Industrial Interiors: Used for processing automotive interior parts, various gaskets, and seals; processable materials include leather, fabrics, rubber foam, EVA, and more.

1.4 Packaging and Footwear Materials: In the packaging industry, they are used to cut blister packaging and paper products; in the footwear industry, they are used for the precision cutting of leather and EVA shoe materials.

2. Advantages and Key Technologies

Hydraulic jigsaw die-cutting presses are well-suited for flexible materials due to the following key technologies:

2.1 High Pressure and High Precision: The equipment typically delivers cutting forces ranging from 40 to 500 tons, enabling it to easily handle multi-layer or high-density materials. Additionally, the four-column structure and precision positioning system ensure pressing and cutting accuracy within ±0.1mm or even ±0.01mm, guaranteeing precise interlocking for puzzle pieces or exact dimensions for electronic components.

2.2 Stable and controllable "soft" cutting: Unlike the rigid impact of mechanical drives, hydraulic systems build pressure gradually. This "soft" characteristic ensures sufficient cutting force while better protecting the cutting die and material, thereby reducing burrs and damage.

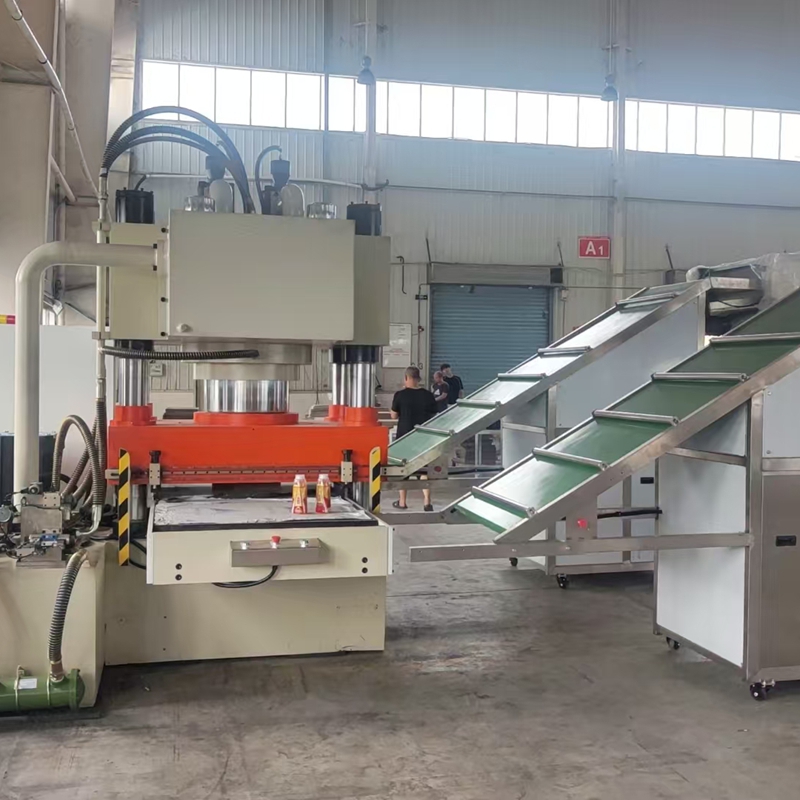

2.3 High efficiency and automation: Modern equipment typically features PLC control and touchscreen interfaces, and can be configured with automatic feeding systems to significantly boost production efficiency. Some high-speed models can achieve cutting speeds of up to 100 cycles per minute at specific stroke lengths, while servo systems can help save up to 20% on material costs.

3. Key considerations for equipment selection

3.1 Material type and thickness: Cutting soft foam versus hard fiberboard requires completely different pressure settings and cutting die configurations.

3.2 Production capacity requirements: Consider whether features like automatic feeding, multi-station sliding tables, or faster cutting speeds are needed.

3.3 Precision requirements: Precision applications, such as those involving electronic components, demand higher-precision positioning systems and machine structures.

What specific types of flexible materials do you plan to process? For example, are you looking at precision foam for the electronics industry or traditional paper puzzles? If you can provide clear procurement requirements, we can offer more specific model recommendations. Jianlong Hydraulic Technology currently offers custom hydraulic presses ranging from 10 to 5,000 tons (with optional accessories like chillers and air compressors). All presses are CE certified and fully compliant with the EU Machinery Directive (2006/42/EC); our products are exported to markets in Europe and the Americas, including Germany, the USA, Mexico, and Portugal. If you have procurement needs, please contact us (or scan the WhatsApp QR code below); Jianlong Hydraulic Technology is dedicated to providing you with personalized, customized professional solutions.
